Precise measuring tools & rules for construction and industrial use. Manufactured by Shinwa. Made in Japan (tailor ruler)

FOB Reference Price:Get Latest Price
US $10-100 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Japan
Brand Name:
SHINWA
Model Number:
62081 (Metric or Inch)
Supply Ability
Supply Ability:
10 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
It varies depending on product quantity. Please, ask for more information.
Port
Fukuoka,Hakata,Moji
Lead Time :
Shipped within 1 week after payment confirmation.

Precise measuring tools & rules for construction and industrial use. Manufactured by Shinwa. Made in Japan (tailor ruler)

Product Description

Shinwa Rules Co., Ltd. is the most reliable metallic rule manufacturer brand  in Japan

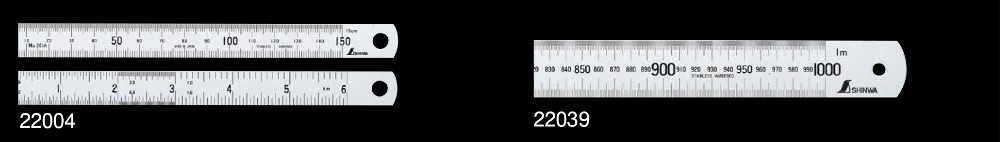

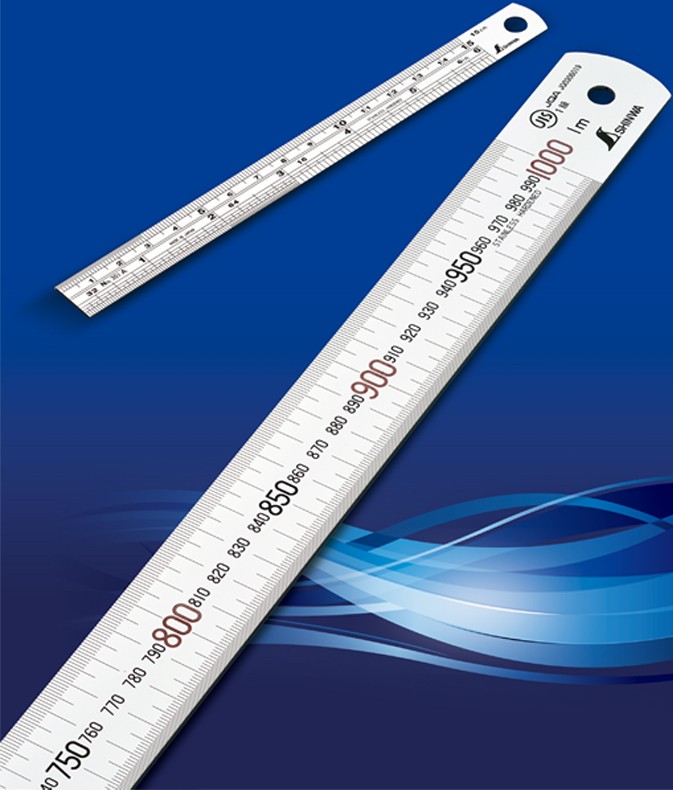

1. Stainless Steel Rules/Machine Scale


Stainless Steel Rule Hard Chrome Finish [Metric/Inch]SHINWA_GENERAL_CATALOG_2015-25.jpg

Item Code Description Of ProductOverall Length×Width×Thickness (mm)WeightPacking Unit
22004H-201A 15cm / 6"175×15×0.510g50
22012H-201C 30cm / 12"335×25×1.065g
22021H-201E 60cm / 24"640×30×1.2180g10
22039H-201F 1m / 36"1,050×35×1.5425g
22040H-202G 1.5m / 60"1,565×40×2.0950g5
22041H-202H 2m / 78"2,065×40×2.01,250g
22042H-202 I 3m / 118"3,065×40×3.02,865g

[Features]

*Metric scale on front side and inch scale on back side

*Hard chrome finish provides its surface with excellent durability and prevents glare on the scale for high readability

*Etching and plating finish maintains its performance even under harsh conditions.

*English package *Made in Japan

*Rules with red Numbers available and/or with magnet are available upon request. For more information, please contact us without hesitation

[Specifications]

*Graduation pitch

*Inch conversion chart on the back( from 15cm to 1m)

  15cm/6”~1m/36” 1.5m/60”~3m/118”
Front SideUpper0.5mm pitch0.5mm, 1mm pitch
Lower1mm pitch1mm pitc
Back SideUpper1/10”,1/20”,1/50”pitchh1/10”,1/20”,1/50”pitch
Lower1/16”,1/32”,1/64”pitch1/16”,1/32”,1/64”pitch

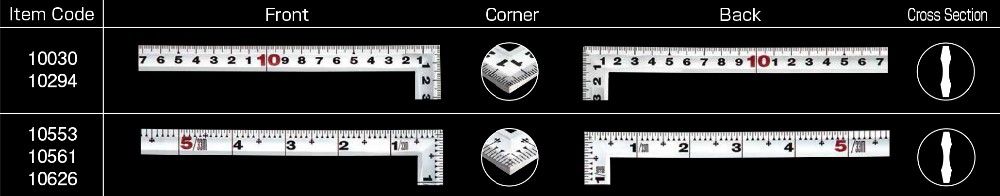

2. Carpenter's Squares


Carpenter's Square High Quality Thin, Falt & Thick Corner


Item CodeDescription Of Product

Shape of Corner

Scale on Front SideScale on Back Side

Branch×Width×Thickness (Short)(mm)

Weight

Packing
Unit

Long (outside)

Short (outside)Long (outside)Short(outside)
1003050cmThick50cm25cm50cm25cm

520×15×1.4(260)

91g10
1029430cmThick30cm15cm30cm15cm

320×15×1.4(160)

60g
105531shaku5sunThick

1shaku 5sun

7.5sun

1shaku 5sun

7.5sun

485×15×1.4(242.5)

86g
105611shaku6sunThick

1shaku 6sun

8sun

1shaku 6sun

8sun

520×15×1.4(260)

91g
106261shakuThick

1shaku

5sun

1shaku

5sun

320×15×1.4(160)

60g

[Features]

*Same scale on both sides (obverse and reverse)  *Hard chrome finish reduce reflection

*Easy-to-read large scale marks  *Hard chrome finish on graduation

*Rules with cm/shaku measurements, red/green numbers, magnet, Japanese zodiac signs, JIS mark, in black or wide polish finish are also available. For more information, please contact us without hesiation

*Special Scales: Square Scale (SS), Circle Scale(CS), Back Side Indicator, Mortise Scale(MS)

[Specifications]

SquarenessLess than 0.1mm per 100mm
Length Tolerance±0.2mm
MaterialStainless steel



*The difference between Polish Finish and Hard Chrome Finish is that both are made of stainless steel, but the hard chrome finish is matte. This prevents glare and makes it easier to read.

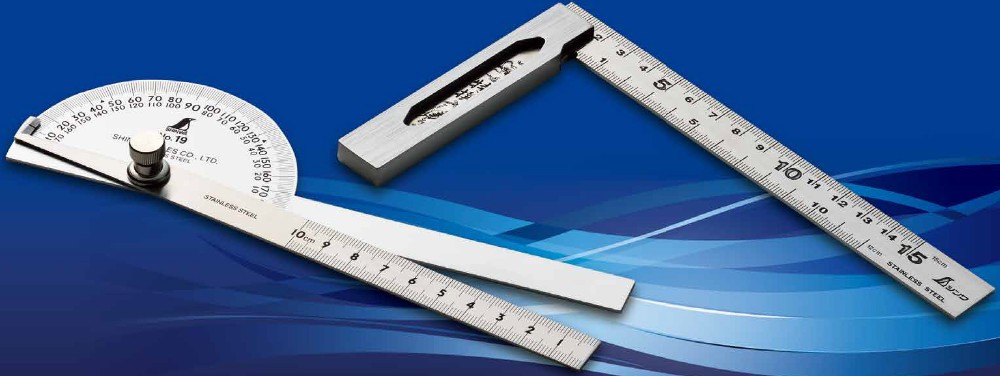

3. Squares/Protractors

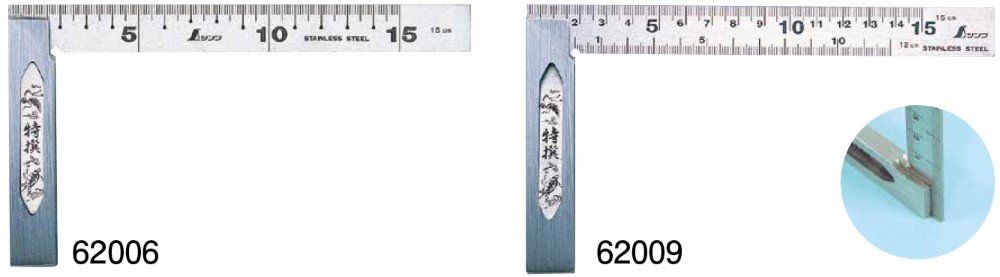

Japanese Try Square


Item CodeDescription of ProductBase Length×Width×Thickness(mm)Blade Length×Width×Thickness(mm)WeightPacking
Unit
6201413cm with Square Scale94×18×8161×18×1.5110g6
6200615cm with Square Scale177×18×1.5114g
6200915cm

[Features]

*It can be used to work out the size of timber you can cut from a log

*For inspection of the right angle on material objects or products

[Specifications]

Angle Tolerance90°: Less than 0.1mm per 100mm
Length Tolerance±0.3mm
MaterialStainless steel

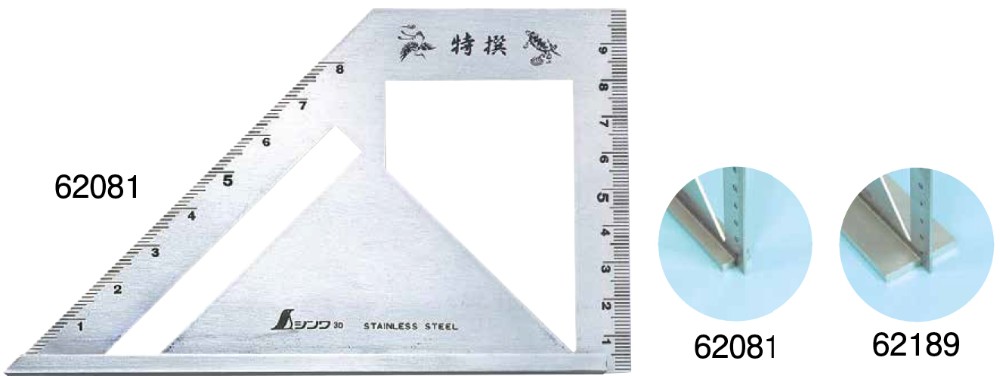

 Miter Square


Item CodeDescription of Product

Base Length×Width×Thickness(mm)

Blade Length×Width×Thickness(mm)Weight

Packing
Unit

62081Standard Model163×15×5170×100×1.5177g6
62189with 40mm Wide Fence163×40×5334g

[Features]

*Use as a Try Square and Miter Gauge

*Mark both left and right 45°angles one side

*For accuracy test of 45 and 90 degree angles

[Specifications]

Angle Tolerance

45°: Less than 0.2mm per 100mm
90°: Less than 0.1mm per 100mm

Length Tolerance±0.3mm
MaterialStainless steel

Miter Gauge & Layout Gauge


ItemCode

 Description of Product

Base Length×Width×Thickness(mm)

Blade Length×Height×Thickness(mm)

Weight

Packing
Unit

62103Standard Model115×15×5172×62×1.5119g12
62060with Graduations
62110with Right Angle133g
62162with 40mm Wide Fence116×40×6251g6




Overall Length×Height×Thickness (mm)


62114Aluminum
Miter Gauge
200×63×73100g
62113

Aluminum
Layout Gauge

168×63×73  90g
62112

Polycarbonate
Layout Gauge

169×63×7344g

[Features]

Miter Gauge

*Helps check and scribe 45 degrees easily.

*Four different types available: Standard, With graduations, With right angle and With 40mm plate

*For testing 45°angle, drawing lines, and scribing

*With Right Angle : Testing 90°angle,drawing lines, and scribing

Miter & Layout Gauge

*Mark precise 45 and 90 degree angles both left and right just bysliding the Miter gauge. No need to reverse the gauge itself

*Excellent stability *Convenient to work on baseboard corner

*For marking a base layout for 45 degree angle

*For testing precise 45 and 90 degree angles

[Specifications]

Angle Tolerance

45°/90°: Less than 0.2mm per 100mm

Length Tolerance±0.3mm (left)/±0.2mm (right)
MaterialStainless steel (left)

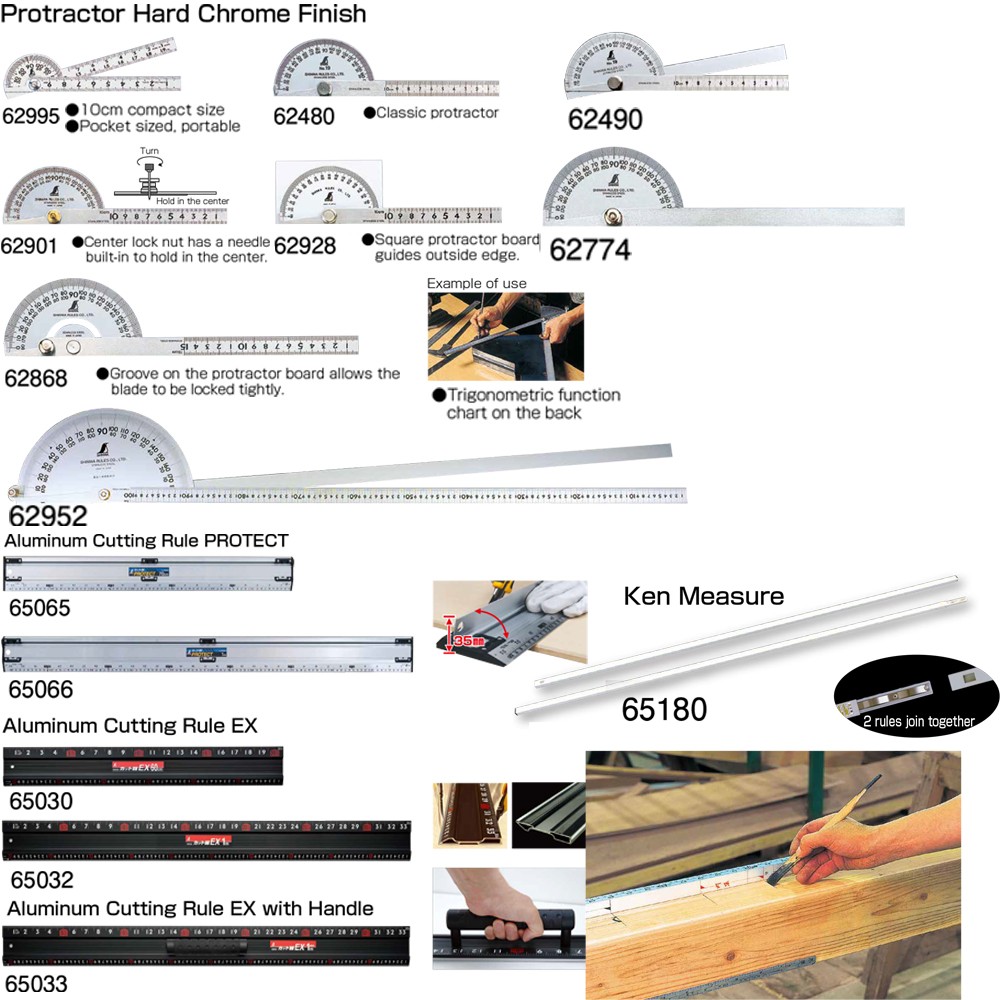

4. Other Protractors and Applications
